IMITATES SUNLIGHT AND CARES FOR PLANTS
Natural Ecological Light For Plant Growth
Products Description
1. Quantum plate grow light used LM281B/LM301H LAMP BEADS,high-density LED light source vantage point array PPF 810μmol/s,high luminous efficacy with wide coverage EFF 2.7μmol/j.
2.Unified Compact Aluminum Alloy Lighting Enclosure.
3.Lower temperatures decrease the rate of light decay, thereby improving yield.
4.Each fixture features an RJ14 serial interface for daisy-chaining multiple units and enabling synchronized dimming control.
5.More colors available for the housing shell.

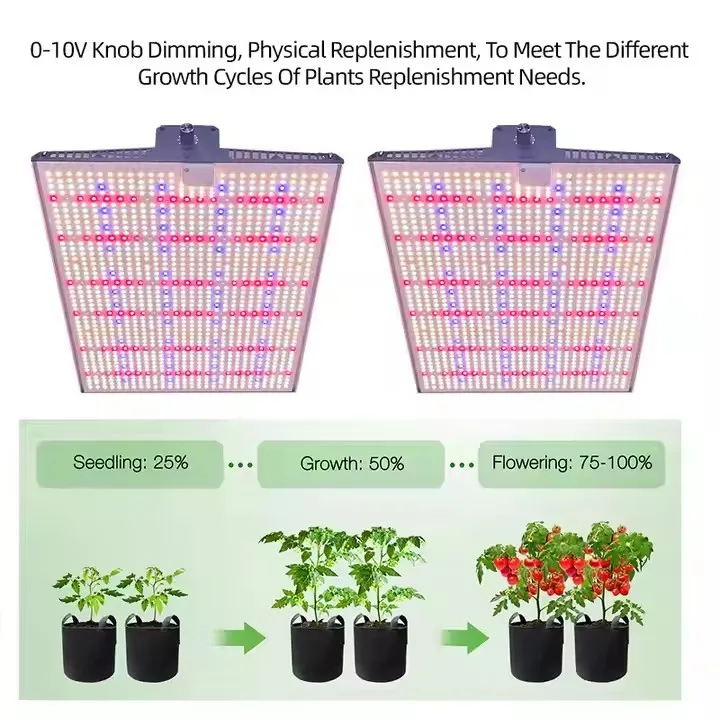

6.Horticulture lighting group quantum board is 0-10V Knob Dimming, physical replenishment, to meet the different growth cycles of plants replenishment needs.
Products Description
| Product Name | Quantum Board | ||
| Power | 100W | 200W | 300W |
| Input Voltage | 100-277VAC 50/60Hz | 100-277VAC 50/60Hz | 100-277VAC 50/60Hz |
| PPF (380-780nm) | 270μmol/S | 540μmol/S | 810μmol/S |
| EFF | 2.7μmol/J | 2.7μmol/J | 2.7μmol/J |
| Coverage | 2x2ft | 2.5x2.5ft | 3x3ft |
| Color | Full spectrum 3000K+6500K+460nm+660nm+730nm(IR) | ||
| Waterproof Level | IP65 | ||
| Product Size | L325*W253*H53.5mm | L353XW325XH53.2MM | L503XW325XH53.2MM |
| Packaging Size | L375*W305*H90mm | L405XW375XH90MM | L555XW375XH90MM |
| G.W | 2.68kg |
3.08kg |
4.16kg |
| Lifespan | >50,000H | >50,000H | >50,000H |
| Warranty | 5years | ||
Products Details
PRODUCT BENEFITS:
1.Can Be Directly Hung On A Chain
2.0~10V Dimmer Knob RJ14 Port
3.Exclusive Appearance Design Patent, Better Heat Dissipation
4.Power Connectors IP68 Rated, ROHS, CE Certified
quantum board lm301h has three wattage 300W 200W 100W quantum board size:503*325*53.2mm,353*25*53.2mm,253*25*53.2mm
This image depicts a compact LED quantum board designed for precision horticultural lighting applications. Key features include:
PPFD Performance:
Measured at 30cm: Range of 301–1568 μmol/m²/s (peak intensity at center)
Measured at 45cm: Range of 305–941 μmol/m²/s
Uniform light distribution demonstrated by gradient values across the grid.
Packaging Size :
Dimensions: 555mm (L) × 375mm (W) × 90mm (H)
Gross Weight: 4.5kg/CTN
Compact design optimized for vertical farming racks and greenhouse installations.
Application Focus:
Engineered for full-spectrum plant growth with tunable photon output.
Products Applications
LED Quantum Board Plant Growth Lighting Applications：
Quantum board LEDs enable full-spectrum tuning for multi-layer vertical farming systems.
upplemental lighting with dimmable quantum boards increases tomato yield by 37% in winter greenhouses.
UV-enhanced quantum board arrays optimize cannabinoid synthesis in cannabis cultivation.
